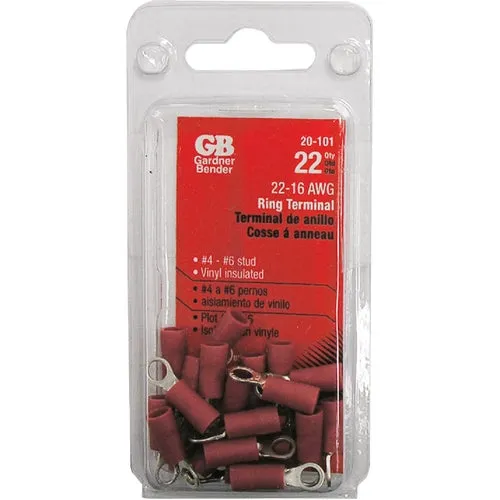

20-101 Gardner Bender Vinyl-Insulated Barrel Ring Terminal
Vinyl-insulated barrel ring terminal rated a 600 volt maximum. Temperature rating: 167 deg (degrees) Fahrenheit/75 deg Celsius.
No. 20-101: Wire Size: 22 to 16 AWG, Stud Size: #4 to #6, Color: Red, Hole Size: 0.1435 In., Certification: UL Listed, Pkg Qty: 22, Package Type: Clamshell
No. 20-102: Wire Size: 22 to 18 AWG, Stud Size: #8 to #10, Color: Red, Hole Size: 0.2080 In., Certification: UL Listed, Pkg Qty: 22, Package Type: Clamshell
No. 21-101: Wire Size: 22 to 18 AWG, Stud Size: #4 to #6, Color: Red, Hole Size: 0.1435 In., Certification: UL Listed, Pkg Qty: 10, Package Type: Clamshell
No. 10-104: Wire Size: 16 to 14 AWG, Stud Size: #8 to #10, Color: Blue, Hole Size: 0.2065 In., Certification: UL Listed, Pkg Qty: 100, Package Type: Clamshell
No. 20-103: Wire Size: 16 to 14 AWG, Stud Size: #4 to #6, Color: Blue, Hole Size: 0.1400 In., Certification: UL Listed, Pkg Qty: 22, Package Type: Clamshell
No. 20-104: Wire Size: 16 to 14 AWG, Stud Size: #8 to #10, Color: Blue, Hole Size: 0.2080 In., Certification: UL Listed, Pkg Qty: 22, Package Type: Clamshell
No. 20-105: Wire Size: 16 to 14 AWG, Stud Size: #12 to 1/4 In., Color: Blue, Hole Size: 0.2575 In., Certification: UL Listed, Pkg Qty: 17, Package Type: Clamshell
No. 10-106: Wire Size: 12 to 10 AWG, Stud Size: #8 to #10, Color: Yellow, Hole Size: 0.2075 In., Certification: UL Listed, Pkg Qty: 50, Package Type: Clamshell
No. 20-106: Wire Size: 12 to 10 AWG, Stud Size: #8 to #10, Color: Yellow, Hole Size: 0.2010 In., Certification: UL Listed, Pkg Qty: 14, Package Type: Clamshell
No. 20-107: Wire Size: 12 to 10 AWG, Stud Size: #12 to 1/4 In., Color: Yellow, Hole Size: 0.2595 In., Certification: UL Listed, Pkg Qty: 14, Package Type: Clamshell
No. 20-108: Wire Size: 12 to 10 AWG, Stud Size: 1/4 In. to 3/8 In., Color: Yellow, Hole Size: 0.4095 In., Certification: UL Listed, Pkg Qty: 13, Package Type: Clamshell
No. 14-096: Wire Size: 6 AWG, Stud Size: 3/8 In., Color: Blue, Hole Size: 0.375 In., Certification: UL Listed, Pkg Qty: 4, Package Type: Card
No. 14-099: Wire Size: 4 AWG, Stud Size: 1/2 In., Color: Yellow, Hole Size: 0.5 In., Certification: UL Listed, Pkg Qty: 4, Package Type: Card
Sold as Unit of Measure: CARD
Minimum/Multiple Order Quantity: 1
