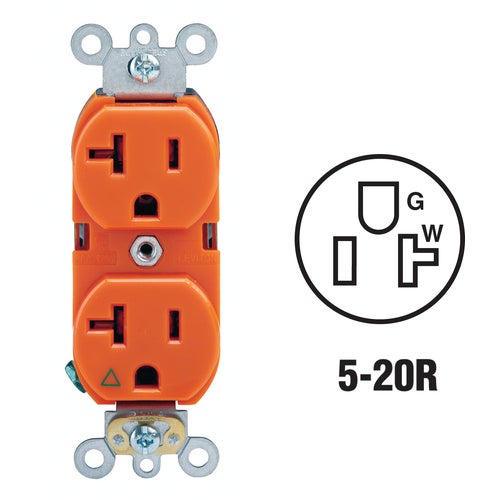

R71-05362-IGS Leviton Isolated Grounding Duplex Outlet

R71-05362-IGS Leviton Isolated Grounding Duplex Outlet

Industrial Specification Grade duplex outlet featuring a molded nylon body. Isolated grounding path (indicated by orange triangle on face) separates the transient currents which can cause electronic equipment such as cash registers, computers and medical instruments to perform poorly. Feed-through and back wire through 8 deep-funneled wire wells. Double-wire copper power contacts for conductivity. Large-head deep-slotted terminal screws are backed out, staked, and spring backed. Use up to

No. 10 copper wire. Break-off fins for 2-circuit wiring. UL (Underwriter's Laboratories) listed for use in hospitals (indicated by green dot on face). 20 amps/125volts, NEMA (National Electrical Manufacturer's Association) 5-20R. Limited 10-year warranty. Orange.

No. R71-05362-IGS: Color: Orange, Amperage: 20, Grade: Industrial, NEMA Configuration: 5-20R, Voltage: 125, Number Of Poles: 2, Number Of Wires: 3, Certification: UL Listed, Pkg Qty: 1, Package Type: Box

Sold as Unit of Measure: EACH

Minimum/Multiple Order Quantity: 1
