Dial Mfg.

7626 Dial Evap Cooler Pillow PlugR-30 white pillow plug. Sewn reinforced vinyl cover. Stops heat loss through evaporative cooler duct. Simple to install. Fits up to 20" x 20" ducts. Friction fit provides air tight seal. Easy to clean. Long lasting. No. 7626: Size: One Size up to 20 In. x 20 In., Material: Vinyl, Pkg Qty: 1, Package Type: Bag

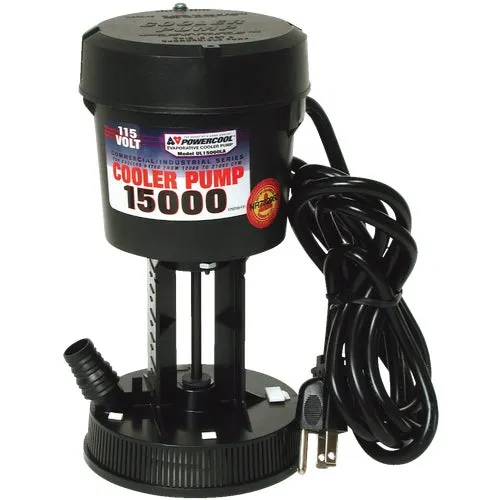

1387 Industrial Concentric Evaporative Cooler PumpFor commercial/industrial coolers rated from 12,000 to 21,000 cfm (cubic feet per minute). Motor housing made from flame-retardant plastic. Auto-reset thermal overload protection. Built-in screened inlet in the base. "Low level" design, meaning that even if the water level in the cooler drops to as low as 1/2" it will still pump water without drawing air. Removable baseplate for easy removal of debris that might clog the intake. Corrosion...

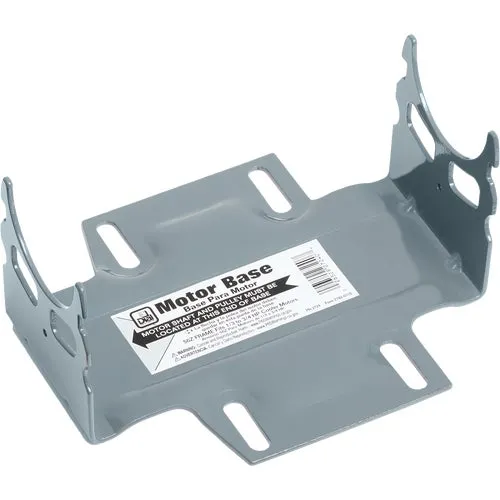

2724 Motor BaseBase unit for all Dial Mfg. replacement motors. Distance between mounts 7-1/4". Base plate 6-1/2" x 6-1/2". No. 2724: Size: 6-1/2" x 6-1/2"

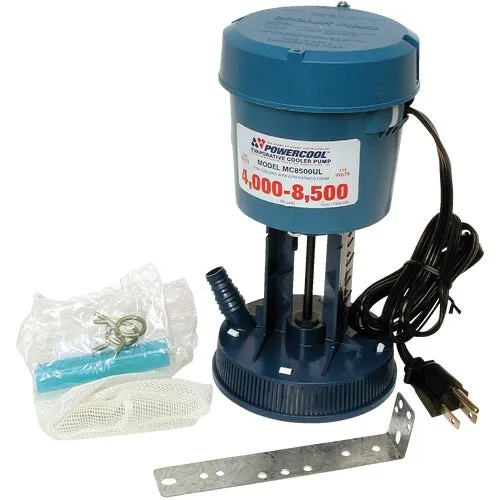

1442 Dial Concentric Evaporative Cooler PumpFor coolers rated from 4,000 to 8,500 cfm (cubic feet per minute) using 8" or 12" Rigid Media. For use with MasterCool and Artice Circle coolers. Includes mesh pump basket, mounting bracket, and pump hose extension. Auto-reset thermal overload protection. Built-in screened inlet in the base. "Low level" design, meaning that even if the water level in the cooler drops to as low as 1/2", it will still pump water without drawing air. Removable baseplate...

3070 Dial Dura-Cool Evap Cooler PadEvaporative cooler pad. High efficiency foamed polyester. More efficient and lasts longer than paper pads. Nonallergenic. Filters air as it cools. Odorless. Can be rinsed out if scale and minerals begin to clog airflow. Won't shrink, sag, or shed fibers. No. 3070: Size: 24 In. x 30 In., Material: Foamed Polyester, Pkg Qty: 1 No. 3072: Size: 28 In. x 34 In., Material: Foamed Polyester, Pkg Qty: 1, Package Type: Bag No. 3073: Size: 29 In. x 30 In., Material:...

3452 Dial 12 In. Rigid MediaFor single inlet evaporative coolers requiring 12" media. Engineered for optimal performance and longevity. Cellulose base impregnated with plastic resins and anti-rot agents. Heavier paper holds more water and lasts longer. High air velocity and energy efficient. No. 3452: Size: 40 In. W x 23 In. H x 12 D, Material: Cellulose/Plastic Resin, Pkg Qty: 1, Package Type: Box No. 3456: Size: 40 In. W x 28 In. H x 12 D, Material: Cellulose/Plastic Resin, Pkg Qty: 1,...

3456 Dial 12 In. Rigid MediaFor single inlet evaporative coolers requiring 12" media. Engineered for optimal performance and longevity. Cellulose base impregnated with plastic resins and anti-rot agents. Heavier paper holds more water and lasts longer. High air velocity and energy efficient. No. 3452: Size: 40 In. W x 23 In. H x 12 D, Material: Cellulose/Plastic Resin, Pkg Qty: 1, Package Type: Box No. 3456: Size: 40 In. W x 28 In. H x 12 D, Material: Cellulose/Plastic Resin, Pkg Qty: 1,...

6634 Dial Pillow Block BearingReplacement bearing assembly designed to fit evaporative coolers. Bronze bearings. No. 6634: Bore Size: 5/8 In., Pkg Qty: 1, Package Type: Clamshell No. 6643: Bore Size: 3/4 In. No. 6664: Bore Size: 1 In. No. 6646: Bore Size: 3/4 In. High Rise No. 6656: Bore Size: 1 In. High Rise

2395 1 HP 2 Speed Evaporative Cooler MotorMotor only, not base. Single Phase, high efficiency, premium moisture resistant insulation system. Suitable for high moisture applications. Heavy-duty bronze bearing. 5/8" shaft diameter fed by an extra large reservoir of oil, ensures long life. Permanently lubricated sleeve bearings. Thermal overload protected. Motor is permanently lubricated during production, no relubrication is required. Superior starting switch features rust inhibiting materials...

6151 Variable PulleyAdjustable pulley for evaporative cooler motor. Made of zinc. No. 6123: Size: 3-1/4" Dia x 1/2" OD Bore, Motor Size: 1/3 HP, Material: Zinc No. 6144: Size: 3-3-1/2" Dia x 1/2" OD Bore, Motor Size: 1/2 HP, Material: Zinc No. 6151: Size: 3-3/4" Dia x 1/2" OD Bore, Motor Size: 1/2 HP or 3/4 HP, Material: Zinc, Pkg Qty: 1, Package Type: Bag No. 6172: Size: 4" Dia x 5/8" OD Bore, Motor Size: 1 HP, Material: Zinc, Pkg Qty: 1, Package Type: Bag ...

7546 Motor Cord 2-Speed Evaporative CoolerEquipped with terminals to fit cooler motor and grounded plug to fit the cooler's junction box. 14 ga (gauge) SJTW (hard service cord, wire type) jacketed cord with 4 wires for 2-speed evaporative cooler motors up to 1 HP (horsepower). No. 7546: Pkg Qty: 1, Package Type: Clamshell

6170. Adjustable pulley for evaporative cooler motor. Made of zinc. No. 6123: Size: 3-1/4" Dia x 1/2" OD Bore, Motor Size: 1/3 HP, Material: Zinc No. 6144: Size: 3-3-1/2" Dia x 1/2" OD Bore, Motor Size: 1/2 HP, Material: Zinc No. 6151: Size: 3-3/4" Dia x 1/2" OD Bore, Motor Size: 1/2 HP or 3/4 HP, Material: Zinc, Pkg Qty: 1, Package Type: Bag No. 6170: Size: 4" Dia x 1/2" OD Bore, Motor Size: 1 HP, Material: Zinc, Pkg Qty: 1, Package Type: Bag No. 6172: Size: 4" Dia x 5/8" OD Bore, Motor Size:...

6172 Variable PulleyAdjustable pulley for evaporative cooler motor. Made of zinc. No. 6123: Size: 3-1/4" Dia x 1/2" OD Bore, Motor Size: 1/3 HP, Material: Zinc No. 6144: Size: 3-3-1/2" Dia x 1/2" OD Bore, Motor Size: 1/2 HP, Material: Zinc No. 6151: Size: 3-3/4" Dia x 1/2" OD Bore, Motor Size: 1/2 HP or 3/4 HP, Material: Zinc, Pkg Qty: 1, Package Type: Bag No. 6172: Size: 4" Dia x 5/8" OD Bore, Motor Size: 1 HP, Material: Zinc, Pkg Qty: 1, Package Type: Bag ...

3440 Dial 8 In. Rigid MediaFits 8" UltraCool, ADA/ASA 50 & 51 or 70 & 71, ComfortCool, and SI700, single inlet cooler. Engineered for optimal performance and longevity. Long life, high air velocity, energy efficient, and consistent performance. Cellulose base impregnated with plastic resins and anti-rot agents. Heavier paper holds more water and lasts longer. Durable and easy to install. Limited 1 year warranty. No. 3440: Size: 41-1/4 In. W x 22-1/4 In. H x 8 In. D, Material: Cellulose/Plastic...

3441 Dial 8 In. Rigid MediaFits 8" UltraCool, ADA/ASA 50 & 51 or 70 & 71, ComfortCool, and SI700, single inlet cooler. Engineered for optimal performance and longevity. Long life, high air velocity, energy efficient, and consistent performance. Cellulose base impregnated with plastic resins and anti-rot agents. Heavier paper holds more water and lasts longer. Durable and easy to install. Limited 1 year warranty. No. 3440: Size: 41-1/4 In. W x 22-1/4 In. H x 8 In. D, Material: Cellulose/Plastic...

6323 Blower PulleySingle groove blower pulley for residential evaporative coolers, zinc construction. Includes set screw. No. 6323: Size: 10" x 3/4", Motor Size: N/A, Material: Zinc, Pkg Qty: 1, Package Type: Hang Tag No. 6324: Size: 10" x 1", Motor Size: N/A, Material: Zinc, Pkg Qty: 1, Package Type: Hang Tag

3080 Dial Dura-Cool Evap Cooler PadEvaporative cooler pad. High efficiency foamed polyester. More efficient and lasts longer than paper pads. Nonallergenic. Filters air as it cools. Odorless. Can be rinsed out if scale and minerals begin to clog airflow. Won't shrink, sag, or shed fibers. No. 3070: Size: 24 In. x 30 In., Material: Foamed Polyester, Pkg Qty: 1 No. 3072: Size: 28 In. x 34 In., Material: Foamed Polyester, Pkg Qty: 1, Package Type: Bag No. 3073: Size: 29 In. x 30 In., Material:...

5351 Dial Evap Cooler CoatingA heavy bodied, black coating designed to seal and maintain evaporative air coolers. Protects against rust and corrosion. Fast drying, spray aerosol. No. 5324: Size: 13 Oz., Pkg Qty: 1, Package Type: Can No. 5328: Size: 20 Oz., Pkg Qty: 1, Package Type: Can No. 5347: Size: 1 Qt., Pkg Qty: 1, Package Type: Can No. 5351: Size: 1 Gal., Pkg Qty: 1, Package Type: Can

6845. Installs onto the blower shaft of an evaporative cooler. Prevents sideways play in the shaft. No. 6845: Size: 3/4", Material: Steel Collar, Leather Washer, Pkg Qty: 1, Package Type: Clamshell No. 6846: Size: 1", Material: Steel Collar, Leather Washer, Pkg Qty: 1, Package Type: Clamshell

6846 Dial Collar & WasherSolid steel collar with zinc plating installs onto the blower shaft of an evaporative cooler. Prevents sideways play in the shaft. Includes set screw. No. 6846: Size: 1 In., Material: Steel Collar, Leather Washer, Pkg Qty: 1, Package Type: Clamshell

7583 Pigtail Motor ReceptacleUse to connect evaporative cooler motor cord to the electrical power source when no junction box is available. Can be used for either 1 or 2 speed motors up to 1 HP. No. 7583: Voltage: 115V & 230V, Horsepower: Up to 1 HP, Pkg Qty: 1, Package Type: Clamshell

7589 Pigtail Pump ReceptacleUse this to connect an evaporative cooler pump to the electrical power source when no junction box is available. No. 7589: Voltage: 115V, Pkg Qty: 1, Package Type: Clamshell

7610 Up-Dux Ceiling VentA proven method to exhaust an evaporative cooler's air from the house. Air flow from the Up-dux vent also lowers attic temperature. Includes ADR (Automatic Damper Release) which blocks airflow if temperatures exceed 190 F (degree Fahrenheit). No. 7610: Installation: Preassembled, Ceiling Vent Size: 11-5/8" sq x 7-1/4" H, Ceiling Vent Cover: 13-3/4" sq, Includes: Slide-in Winterizing Damper, Pkg Qty: 1, Package Type: Box

8237 Dial EZ-Strap Cover Tie DownUse these two heavy-duty sun-resistant straps to secure a cover to an evaporative cooler. Reduces winter heat loss. No. 8237: Size of Straps: 2 In. W x 15 Ft. L, Pkg Qty: 2, Package Type: Bag
