Reliance/State Ind.

100108422 Reliance (WH9) Lower Electric Water Heater Thermostat For 2-Element Models2 pole connection. 208V thru 440/480V. Replaces No. 7025, No. 8025, No. WH5, and No. WH-7. Can be used to replace thermostats on most residential electric water heaters. Thermostats are set at 120 deg. F. and are adjustable between 110 deg. F. and 160 deg. F. Thermostats include a Safety Energy Cut Off (E.C.O.), that cuts off all power to the heater should internal tank temperature reach 190 deg. F. (The...

100108584 Reliance Hot-Spot Screw-In Water Heater Element1400W, 120V, life-long construction. Screw-in installation projects 8 In. into tank. Replacement for 120V Hot-Spot water heater. No. 100108584: Length: 8 In., Minimum Tank Diameter: 8 In., Material: Incoloy, Voltage: 120 V., Wattage: 1400W, Pkg Qty: 1, Package Type: Box

100108320 Reliance Screw-In ElementThe most popular element in use today. Fits Private Label, State, Reliance , Rheem, Ruud, Sears, Montgomery Ward, and many other brands. No. 100108301: Size: 1 In., Minimum Tank Diameter: 8 In., Material: Copper-Sheath, Voltage: 120 V., Wattage: 1440W, Pkg Qty: 1, Package Type: Card No. 100108307: Size: 1 In., Minimum Tank Diameter: 8 In., Material: Copper-Sheath, Voltage: 240 V., Wattage: 1500W, Pkg Qty: 1, Package Type: Card No. 100108314: Size: 1 In.,...

100108341 Reliance Universal Flange Water Heater Element4 hole square flange bracket. Supplied with square gasket. Fits most makes and models that do not use screw in flanges. Packed 1 per card. No. 100108334: Minimum Tank Diameter: 8 In., Material: Copper-Sheath, Voltage: 120 V., Wattage: 1440W, Pkg Qty: 1, Package Type: Card No. 100108339: Minimum Tank Diameter: 10 In., Material: Copper-Sheath, Voltage: 240 V., Wattage: 2500W, Pkg Qty: 1, Package Type: Card No. 100108341: Minimum Tank...

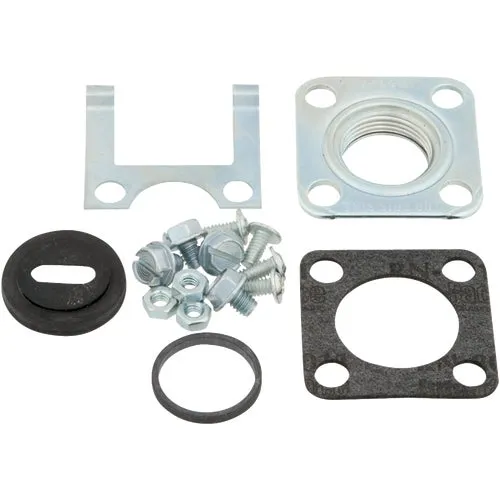

100108263 Reliance Water Heater Element Adapter KitTo adapt screw in elements to older model water heater. Will adapt square or round flange bracket to threaded element. 1 kit per card. Kit includes: 1 round gasket, 2 plates, 4 stove bolts and nuts and 4 self tapping screws. No. 100108263: Pieces in Kit: 15, Pkg Qty: 1, Package Type: Card

100108270 Reliance 2 In. Shank Water Heater Drain ValveFor residential water heaters. 3/4" M.I.P.S. inlet. Hose thread outlet. Long 2" shank to accommodate water heater insulation jacket. Made of fiberglass reinforced Celcon. No. 100108270: Inlet: 3/4 In. MIP, Outlet: 3/4 In. HT, Shank Length: 2 In., Material: Celcon, Pkg Qty: 1, Package Type: Card

100108413 Reliance Heavy-Duty Element Wrench KitFits screw-in water heater elements. Fits 1-1/2" nuts. Helps install and remove water heater elements easily. 5" length allows safe installation over adjustable wrench capabilities. Can be used with a screwdriver for enhanced torque zinc-plated steel body. No. 100108413: Diameter: 1-1/2 In., Length: 5 In., Pkg Qty: 1, Package Type: Bag

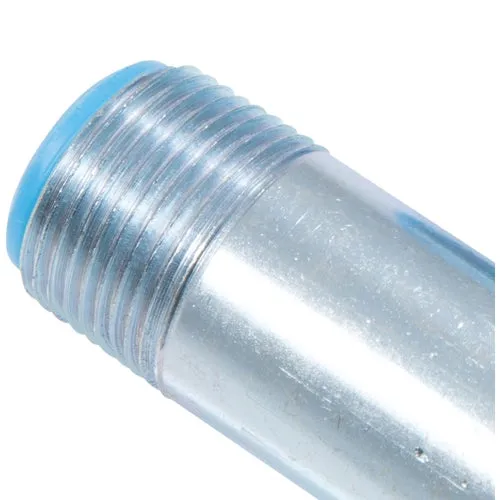

100108410 Reliance Heat Trap NipplesInnovative heat trap nipples that save energy and also serves as a dielectric fitting to prolong tank life. Use on cold and hot water lines for best energy saving results. Heat trap nipple has a PEX Shield lining. No. 100108410: Depth: 3/4 In., Length: 3.0 In., Finish: Metal, Pkg Qty: 2, Package Type: Card

100108401 Reliance Life Long Screw-In ElementWon't burn out in sand, sediment, or lime. Recommended for areas with hard water or high mineral content. Lifetime limited warranty against burnout. Wrinkle design. No. 100108407: Size: 1 In., Length: 13-1/2 In., Minimum Tank Diameter: 14 In., Material: Incoloy, Voltage: 240 V., Wattage: 4500W, Pkg Qty: 1, Package Type: Box No. 100108401: Size: 1 In., Length: 13-1/2 In., Minimum Tank Diameter: 14 In., Material: Incoloy, Voltage: 240 V., Wattage:...

100109290 Reliance 180 F NG Pilot AssemblyPilot assembly for natural gas water heater, assembly kit works on the following model No. 640YOMT, 640YORT4, and 650YOCT. Temperature setting is 180 F (degree Fahrenheit). No. 100109290: Temperature Rating: 180 F, Pkg Qty: 1, Package Type: Bag

100108780 Reliance Temperature And Pressure Relief ValveASME (American Society of Mechanical Engineers) certified. Rated for 150 psi (pounds per square inch) pressure and 210 deg F temperature. 3/4" MIPS (Male Iron Pipe Size) inlet and 3/4" FIPS (Ffemale Iron Pipe Size) outlet. Extra long 3" shank fits all residential models. Fits most NAECA III water heaters. No. 100108780: Size: 3", Material: Brass, Temperature Rating: 210 deg F, Pressure Rating: 150 psi, Pkg Qty: 1, Package Type: Clamshell ...

100262939 Reliance 400 Series Natural Gas Control Valve And ThermostatReliance 400 Series, 2" shank Honeywell electronic natural gas control valve, thermostat powered by 750 Millivolt Generator. Noticeable red LED indicator light blinks 1 time at 3 second intervals during normal operation. Increased temperature control and accuracy. Integral spark igniter, fits reliance standard 400 natural gas water heaters with Honeywell control. No. 100262939: Shank Size: 2 In., BTU Rating: 150,000 BTU,...

100269116 Reliance 3 In. Shank Water Heater Drain ValveNylon childproof drain valve 3/4 In. Male NPT inlet x 3/4 In. Male hose thread outlet with 3 In. long shank,3 In. insulation. Will fit all makes, durable and high quality for years of service. Use when draining tank for routine service or repair. Fits directly into water heater. Fits all NAECA (National Appliance Energy Conservation Act) 111 models. Read instruction manual. 1 year warranty. No. 100269116: Inlet: 3/4 In. MIP, Outlet: 3/4...

100112163 Reliance PVC Concentric Tankless Water Heater Vent KitPVC (polyvinyl chloride) concentric vent 3" hub allows incoming air and outgoing exhaust in a single termination outlet assembly used for condensing tankless models TS-340 and TS-540 heaters. No. 100112163: Size: 3 In., Material: PVC, Pkg Qty: 1, Package Type: Box

100112421 Reliance Stainless Steel Tankless Water Heater Vent KitDirect tankless vent conversion kit, condensate drain backflow preventer, air intake hose, condensate drain tube, concentric termination 5" to 10". Category 3 stainless steel vent piping system. Fits Reliance models TS-110 series. No. 100112421: Size: 5 In. to 10 In., Material: Stainless Steel, Pkg Qty: 1, Package Type: Box

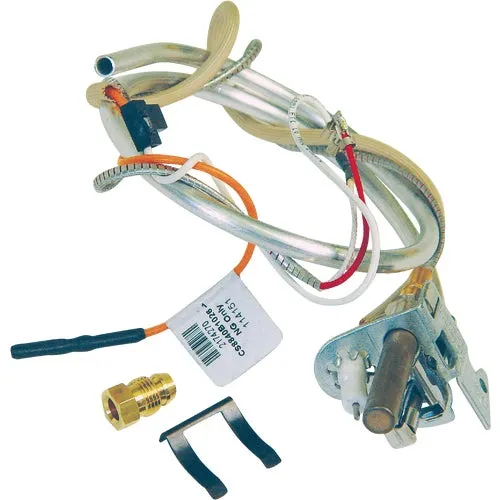

100093983 Reliance Thermopile LP Pilot AssemblyIncludes pilot tube, ferrule nut, ignitor wire, millivolt generator and bracket. Thermopile monitors gas pilot flame to ensure pilot is burning. Thermopile closes off gas to gas valve if it detects a loss of pilot flame. Turn off gas supply to the water heater before replacing part. Fits 301 Series Liquid Propane standard models with Honeywell gas control valves only. No. 100093983: Temperature Rating: N/A, Pkg Qty: 1, Package Type: Box ...

100108307 Reliance Screw-In ElementThe most popular element in use today. Fits Private Label, State, Reliance , Rheem, Ruud, Sears, Montgomery Ward, and many other brands. No. 100108301: Size: 1 In., Minimum Tank Diameter: 8 In., Material: Copper-Sheath, Voltage: 120 V., Wattage: 1440W, Pkg Qty: 1, Package Type: Card No. 100108307: Size: 1 In., Minimum Tank Diameter: 8 In., Material: Copper-Sheath, Voltage: 240 V., Wattage: 1500W, Pkg Qty: 1, Package Type: Card No. 100108314: Size: 1 In.,...

100108415 Reliance Element Gasket KitContains 2 each of the following gaskets: LS style, TG Square style, UF round style and TR screw in style. No. 100108415: Pieces in Kit: 8, Pkg Qty: 1, Package Type: Card

100109295 Reliance 190 F NG Pilot AssemblyPilot assembly for natural gas water heater, assembly kit works on the following model No. 630YOMT, 630YORS, 630YORSD, 630YORT, 640YORTD, 640YOCT, HRN4940S, HRN4940T, and HRN4950T. Temperature setting is 190 F (degree Fahrenheit). No. 100109295: Temperature Rating: 190 F, Pkg Qty: 1, Package Type: Bag

100109136 Reliance Electric Water Heater Tune-Up KitIncluded in the Electric installation kit are two Reliance standard high watt density elements, and universal lower thermostat and protector. No. 100109136: Fuel Type: Electric, Wattage: 4500W, Material: Metal & Plastic, Pkg Qty: 1, Package Type: Clamshell

100285333 Reliance Gas Water Heater Vent Kit for Mobile Home32 In. L. adjustable roof jack vent kit for manufactured housing water heaters, (sold separately). Kit includes air inlet vent, aluminum construction. The direct vent kit must be installed in accordance with the instructions furnished with the manufactured housing direct vent gas water heater. No other roof jack or air inlet assemblies are approved for installation with the manufactured housing direct vent gas water heater. Failure to...

100108297 Reliance Dry Well Element For Mobile Home1500W, 120 V. Used on mobile home type water heaters. 10" long, nonimmersion. No. 100108297: Length: 10 In., Type: Non-Immersion, Voltage: 120 V., Wattage: 1500W, Pkg Qty: 1, Package Type: Bag

100108334 Reliance Universal Flange Water Heater Element4 hole square flange bracket. Supplied with square gasket. Fits most makes and models that do not use screw in flanges. Packed 1 per card. No. 100108334: Minimum Tank Diameter: 8 In., Material: Copper-Sheath, Voltage: 120 V., Wattage: 1440W, Pkg Qty: 1, Package Type: Card No. 100108339: Minimum Tank Diameter: 10 In., Material: Copper-Sheath, Voltage: 240 V., Wattage: 2500W, Pkg Qty: 1, Package Type: Card No. 100108341: Minimum Tank...

100108601 Reliance Long Shank T & P Relief ValveTemperature and pressure relief valve. ASME certified. Rated for 150 P.S.I. pressure and 210 deg. F. 3/4" MIPS inlet and 3/4" FIPS outlet. Extra long 2-1/2" shank. Fits most NAECA III Water Heaters. No. 100108601: Inlet Size: 3/4 In. MIPS, Outlet Size: 3/4 In. FIPS, Temperature Rating: 210 F, Pressure Rating: 150 psi, BTU Rating: 500,000 BTU, Material: Brass, Pkg Qty: 1, Package Type: Card
